Industrial cables

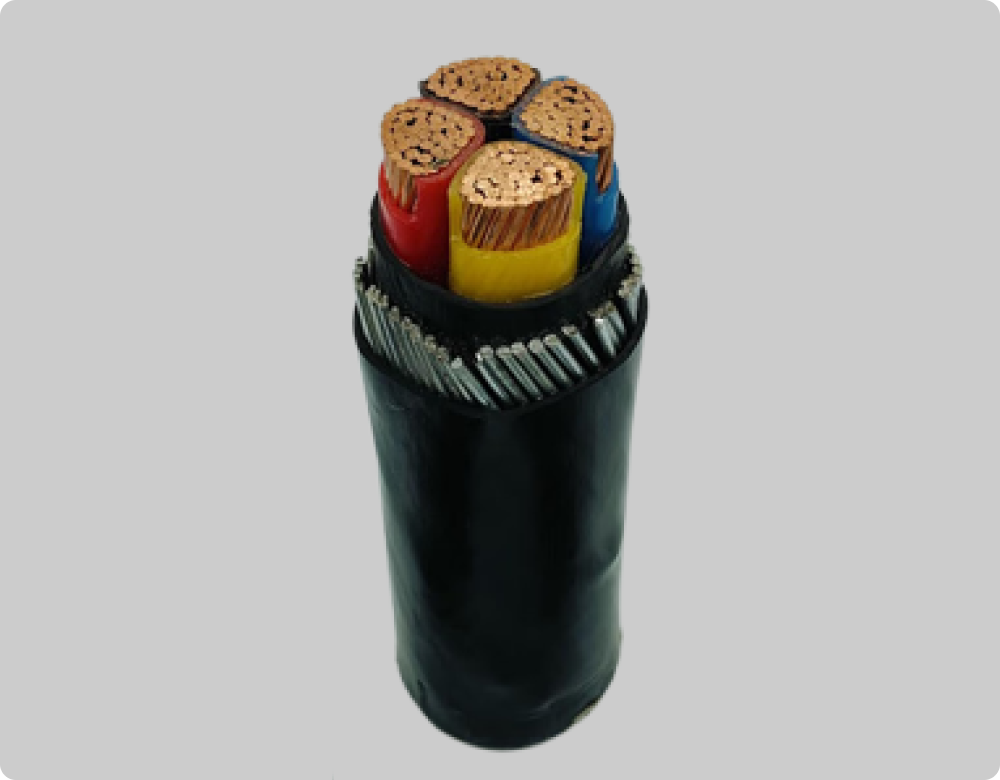

Industrial cables (armoured) Copper or Aluminium Conductor, XLPE insulation, PVC sheathing, (inner and outer), Steel Wire Armouring
Armoured Cables are used for low voltage power distribution both indoors and outdoors. Cables are in fixed installations. They are used in substations, urban settings, commercial establishments, and industrial plants where there is danger of mechanical damage.
1. Conductor
2. Insulation
3. Bedding
4. Armouring
5. Outer Sheath (Jacket)
Unarmoured Cables to the same specifications are used where there is no danger of mechanical damage.
Cable Installation:
Direct Buried
FreeAir / Ladders/ Trays
In Duct
In Trench|
Nominal Area Size: Sq mm |
Maximum Current Ratings Amperes |
|
|---|---|---|
| Copper | Aluminium | |
| 1.5 | 19 | - |
| 2.5 | 25 | - |
| 4 | 33 | - |
| 6 | 41 | - |
| 10 | 56 | 43 |
| 16 | 72 | 56 |
| 25 | 95 | 74 |
| 35 | 109 | 85 |
| 50 | 132 | 102 |
| 70 | 163 | 127 |
| 95 | 197 | 153 |
| 120 | 226 | 176 |
| 150 | 255 | 199 |
| 185 | 290 | 228 |
| 240 | 336 | 265 |
| 300 | 378 | 301 |
Note: These are the maximum currents that can be carried by these cables if laid in ducts. If they are laid in ground or in air, the current carrying capacity is much higher. Please contact us for more information if required.
